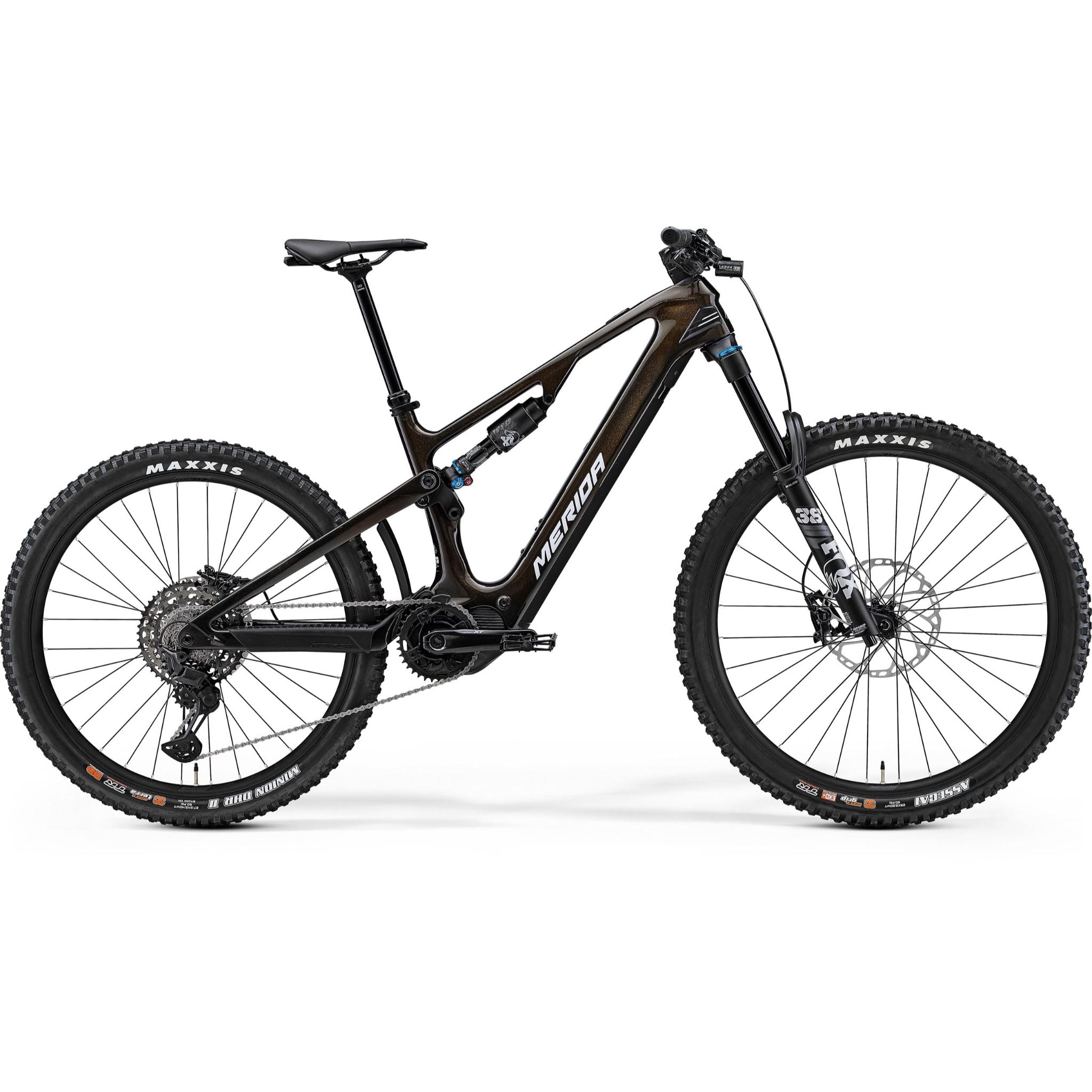

Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery.
A 360 Wh range extender is available separately so you don’t have to choose between precise, playful handling, decent range or support that’ll get you up the trickiest technical sections.
With 170 mm travel at the front and 174 mm at the rear, it’s perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of Merida’s regular One-Sixty enduro complement our proven e-bike heritage.
Merida’s low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida’s flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that’s been designed for the toughest enduro trails.
Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel – whichever suits you.
Features:
- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- Shimano EP801 85Nm motor with internal 600 Wh battery
- Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock
- Highly durable Shimano XT Linkglide e-bike drivetrain
- Merida tubeless-ready wheelset
- Mixed wheel size as standard with option to full 29″
Specifications::eOne-Sixty 7000
FRAME – Carbon III – carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29″ x 2.6″
MOTOR – Shimano EP801; 85Nm
BATTERY – Trendpower TPS-C15-58SD; 600Wh integrated
DISPLAY – Shimano SC-EM800
CHARGER– Trendpower EU Smart Charger; 4A
MODE SWITCH – Shimano SW-EM800-L
SHOCK – FOX Factory Float X2; 2 Pos Lever
FORK – FOX 38 Performance Elite eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29″ x 2.6″
SHIFTERS – Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter
REAR DERAILLEUR – Shimano XT RDM8130 LinkGlide 11
BOTTOM BRACKET – Part of Shimano Steps motor
CHAINSET– FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide
CASSETTE– Shimano LG700; 10-50 teeth; 11 Speed
FRONT BRAKE – Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE – Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM – Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET – Acros ICR Merida integrated neck with Blocklock
SADDLE – Proxim Nembo Steel; V-mount adapter; including Merida minitool
SEATPOST – Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
RIMS – Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″
FRONT HUB – Shimano XT; 110x15mm; 32 spoke; Centerlock
REAR HUB – Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE – Maxxis Assegai; 29″ x 2.5″; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE – Maxxis DHR II; 27.5″ x 2.4″; Kevlar bead, folding; 3C DD TR MaxxTerra
FRONT LIGHT – Lezyne E-BIKE POWER STVZO E115,
REAR LIGHT – USB REAR Light CG-214RG
