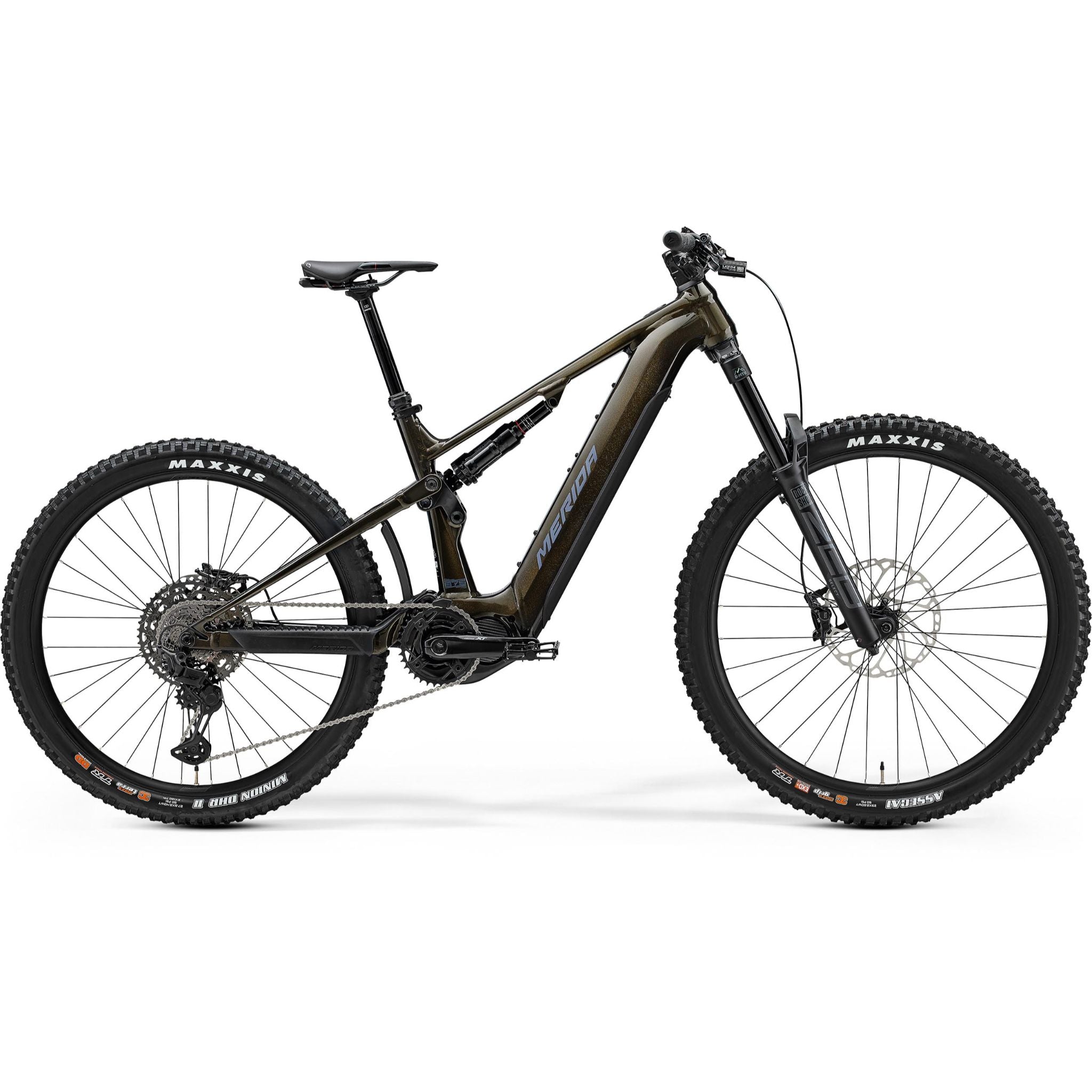

With the new Merida eOne-Sixty, the next descent is always about to start.
The Merida’s aluminium frame offers great value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750Wh battery. A 360 Wh range extender is available separately.
The capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents.
Merida’s proven FAST kinematic suspension will take care of anything the trail throws at it. Offering low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks.
The flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that’s been designed for the toughest enduro trails.
Thanks to their 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel – whichever suits you.
Features:
- Fourth generation LITE aluminium frame with 174 mm rear wheel travel
- Shimano EP801 85Nm motor with removable 750 Wh battery
- Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock
- Hardwearing Shimano XT Linkglide drivetrain
- Merida tubeless-ready wheelset
- Mixed wheel size as standard with option to full 29″
Specifications::eOne-Sixty 875
FRAME – Lite IV – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29″ x 2.6″
MOTOR – Shimano EP801; 85Nm
BATTERY – Trendpower Internal Battery Gen 2; 750Wh
DISPLAY – Shimano SC-EM800
CHARGER– Trendpower EU Smart Charger; 4A
MODE SWITCH – Shimano SW-EM800-L
SHOCK – Rock Shox Super Deluxe Select
FORK – Rock Shox ZEB Select; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29″ x 2.8″
SHIFTERS – Shimano SL-MT500-IL dropper lever with Shimano XT M8130-11 shifter
REAR DERAILLEUR – Shimano XT RDM8130 LinkGlide 11
BOTTOM BRACKET – Part of Shimano Steps motor
CHAINSET – FSA 1x Steel chainring; 36 teeth with Shimano FC-E8150 crank; 165mm for all sizes; with Merida chain guide
CASSETTE – Shimano LG700; 10-50 teeth; 11 Speed
FRONT BRAKE – Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE – Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM – Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET – Acros ICR Merida external neck with Blocklock
SADDLE – Proxim Nembo Steel; V-mount adapter; including Merida minitool
SEATPOST – Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
RIMS – Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″
FRONT HUB – Shimano XT; 110x15mm; 32 spoke; Centerlock
REAR HUB – Shimano XT; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE – Maxxis Assegai; 29″ x 2.5″; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE – Maxxis DHR II; 27.5″ x 2.4″; Kevlar bead, folding; 3C DD TR MaxxTerra
FRONT LIGHT – Lezyne E-BIKE POWER STVZO E115,
REAR LIGHT – Lezyne LED FEMTO USB REAR STVZO
